Photos are for reference only
€ 473,00Excl. Tax

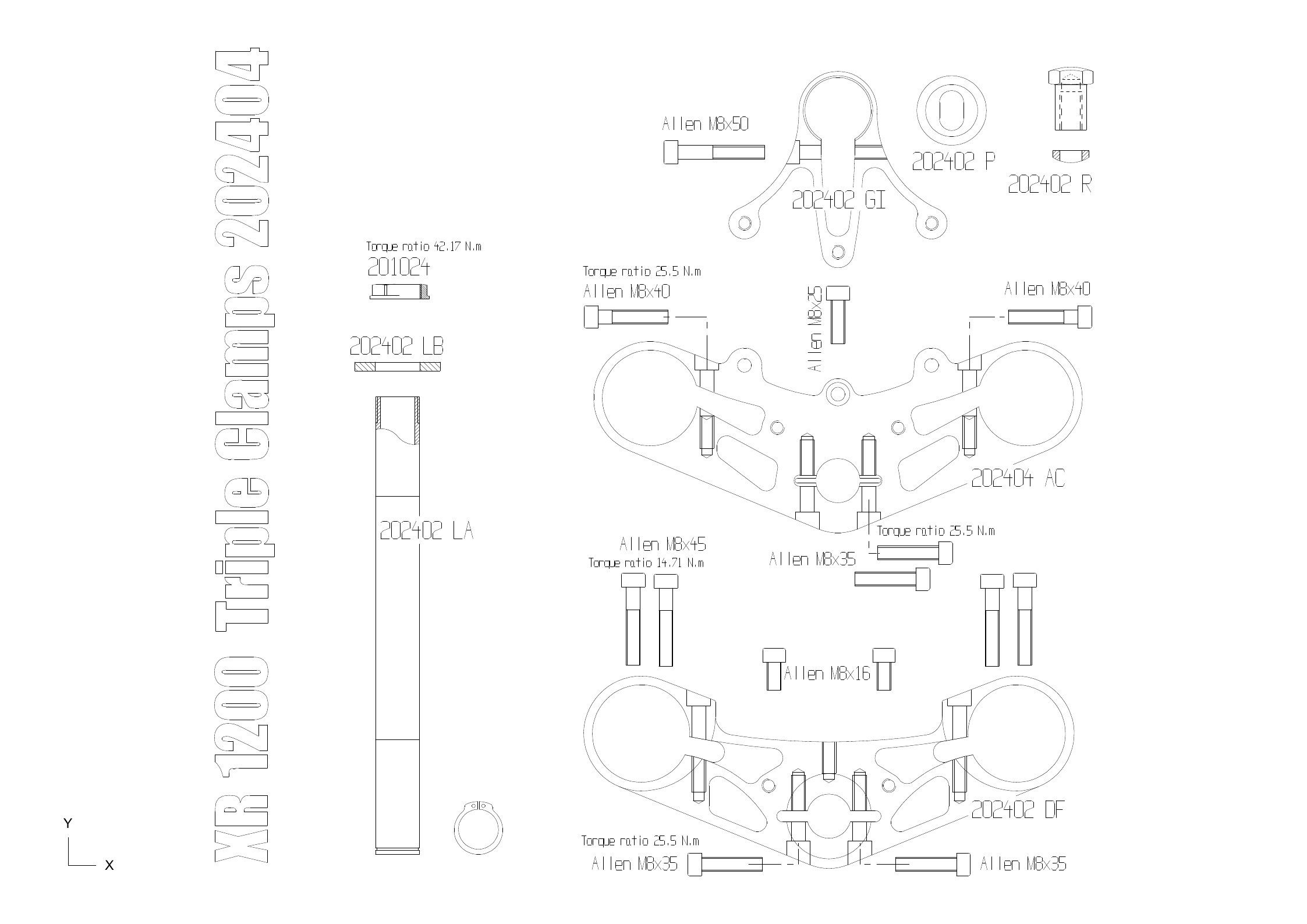

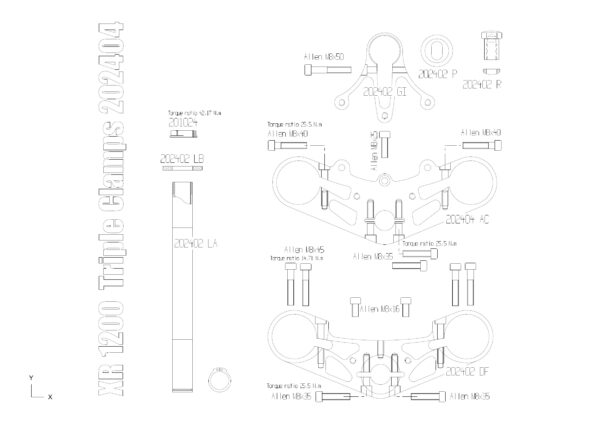

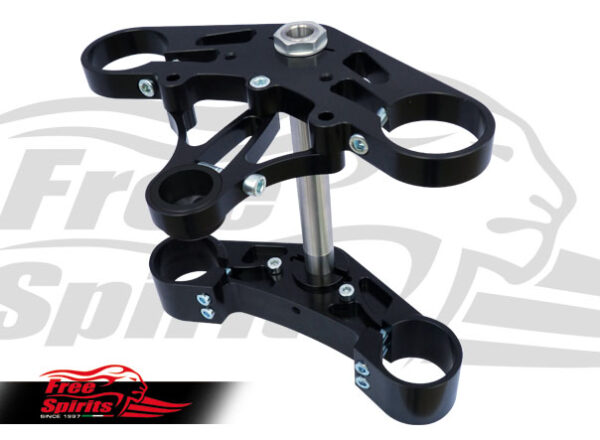

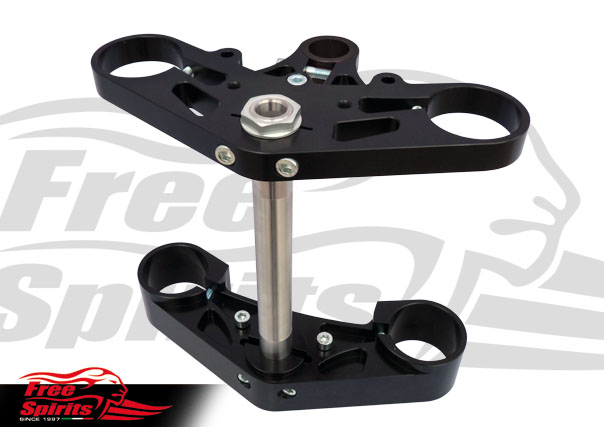

This kit for Harley Davidson XR1200, offers replacement top and bottom triple clamps in lightweight CNC machined billet aluminium, black anodised.
The fork offset is 0 degrees, 1.5° more than stock and the same as the Italian XR1200 Trophy race version, therefore handling will stable (this is to partially compensate the raised tail with suspension risers fitted “209001“).
Plates steering billet in a new alloy to ensure stiffness and yield strengths.
The holes lightening thanks to their special geometry, both on the top plate which the lower one can reach a level of unique lightness while maintaining rigidity well above the standard.
Another important factor is that the holes are finished by boring, and not interpolation, thus ensure an exact fit between stems and plates that consequently turns into greater rigidity.
Complete with steering stud, is mounted on OEM steering bearings.
The risers are available with our code: 202405 – 202406.
Complete with istruction ready for installation.
As Free Spirits tradition all the modifications are reversible.
For this kit spare parts are available.
